PROBLEMS
MATILDA centerboards, as the boats become older, are becoming a problem for MATILDA owners.
The problem is not so much the centerboard itself but the centerboard guides, although a rusty, pitted centerboard adds greatly to the problem of wear on the guide.
Basically, there are two types of problems with the guides. Even though the guides were made from high quality wood, white oak, they are subject to
#1. DRY ROT from being in a moist, poorly ventilated environment.
#2. WEAR from being subjected to guiding the centerboard as it is raised and lowered.
The centerboards can be broken down into 2 types.
#1. The "EARLY" centerboards, which have a bulb with material ahead and behind where the bulb is attached to the centerboard. Steel was used to cast these bulbs.
#2.
The later centerboards, "TAIL HEAVY", as they only have material in the bulb behind where the bulb is attached to the centerboard. Lead was used to cast these bulbs. Centerboard type 2 are much more susceptible to problem #2.
UNITED KINGDOM MATILDA WITH FULL LENGTH KEEL
This is an interesting photo of a U.K. MATIDA with a full length keel.
Sunday, October 01, 2006 1:37 PM
Afternoon Onde,
Thank you for your favourable comment on our BLOG,http://pamsmatilda.blogspot.com/
Glad to hear that it is of value.You have raised some excellent questions regarding the "ACHILLES HEEL" of MATILDAS with "TAIL HEAVY" centerboards. I am sure that many a MATILDA has been rendered UNSAILABLE [consequentially unsaleable to the informed buyer] because of this condition.
Repairing a MATILDA with rotted centerboard guides is a major undertaking but if the guides are only worn, a revised pulley system may prevent the problem from progressing further.In order to determine the best course of action, you have to evaluate the condition of the wooden guides. Certainly removing or lowering the centerboard would make this inspection easier.
#1 If you have found a bit of rotted wood on your centerboard guides, you can rest assured that dry rot has set in and it is only a matter of time until the entire wooden structure deteriorates completely [in spite of the high quality original material -oak- being used]. In this case, the wooden guides must be replaced completely.
OR
#2 You may find that the wooden frame in the area of the limit bolt has had the wood fibres crushed as a result of impact, etc. Replacing the bolt, with proper washers, may solve the problem.This might be an opportune time to check the wear on the lower front corner of the guides. If wear is evident then you might consider changing the pulley system to minimize wear on the lower corner,. See our blog. Specific answers to your questions will follow in another posting.Hope this information is of value to you.
Cheers
Lorne
--~--~---------~--~----~------------~-------~--~----~This message is part of the topic "Oak keel guides" in the Google Group "Matilda Sailboats"for which you requested email updates.To stop receiving email updates for this topic, please visit the topic at http://groups.google.com/group/Matildasail/t/ec552571cd84095d-~----------~----~----~----~------~----~------~--~---
"TAIL HEAVY" centerboards are much more suseptible to wearing of the front guide because of the extreme pressure exerted against the lower corner of the front guide as 160 lbs pressure is always pressing against the guide, even when the centerboard is winched up to the top of its trunk. This causes the lower corner to deteriorate even when the boat is sitting at its dock, if the boat is rocking, from wave action. From observing wear on actual guides, the worn portion extends from the top to the bottom with the greatest wear at the lower end of the groove.
As a result of this deterioration, the board is prone to jam in the trunk when the front guide is worn sufficiently that the pivot bolt is bypassed by the portion of the board that is designed to rest on the pivot bolt. The only thing holding the board from sliding to the bottom of the trunk is that the winch cable has reached the end of its travel. As a result of the board jamming against the bolt, the bolt bends more and more.
DIAGNOSING FRONT GUIDE WEAR
How much clearance should there be, when the centerboard is fully raised in it's trunk and the boat is on it's trailer? If wear has not occurred , there will be approximately 3/4 " clearance [ allowance for the safety bolt cutout] at the rear of the centerboard and almost ZERO clearance at the front between the centerboard and the edge of the cavity. If the clearance at the front is larger than 1/4", you will know that the lower front corner of the centerboard slot is being eroded and future problems will arise.
FROM BROOKS NORTHERN
One other thought. The "keel guides" also support the mast. One photo in the previously referenced link shows a gap between the top of the keel/mast support and the top of the cabin. If you have such a gap,your keel guides/mast support should be replaced.--~--~---------~--~----~------------~-------~--~----~This message is part of the topic "Oak keel guides" in the Google Group "Matilda Sailboats"for which you requested email updates.To stop receiving email updates for this topic, please visit the topic at http://groups.google.com/group/Matildasail/t/ec552571cd84095d-~----------~----~----~----~------~----~------~--~---
The separation of the centerboard trunk from the cabin top may have two factors contributing to the problem.
#1 The weight of the centerboard, on the cross piece (pulling the cross piece down against the rotten front upright which is no longer supported by the lower part of the trunk).
#2 When sailing to windward, in a fresh breeze, the increased tension on the upper shrouds increases the compression load on the mast which forces the cabin top down against the front support. When you are no longer hard on the wind and tension on the mast and shrouds is reduced, the cabin top will spring back to its normal profile, causing the gap to appear. This undue flexing of the cabin top causes the inner and outer layers to separate (delaminate?) creating spongy areas in the cabin roof and deck.
When your centerboard guide starts looking like this, you know it is time to replace your guides!!!!
A note of caution regarding the worn out portion of the guide. If the groove is worn so badly that all the wood at the bottom of the groove is missing or deteriorated, as indicated in the photo, the only thing separating you from a major disaster (read a hole in your craft) is a 1/4" of fibreglass around the front of the guide.
A slight grounding or hitting an object with the bottom of you centerboard bulb will force the top front corner of the centerboard right thru that thin 1/4" layer of fibreglass without any great effort, resulting in a major leak. The time to remedy the problem is before it happens rather than wait for when it does happen.

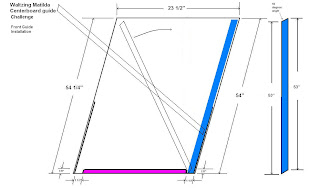

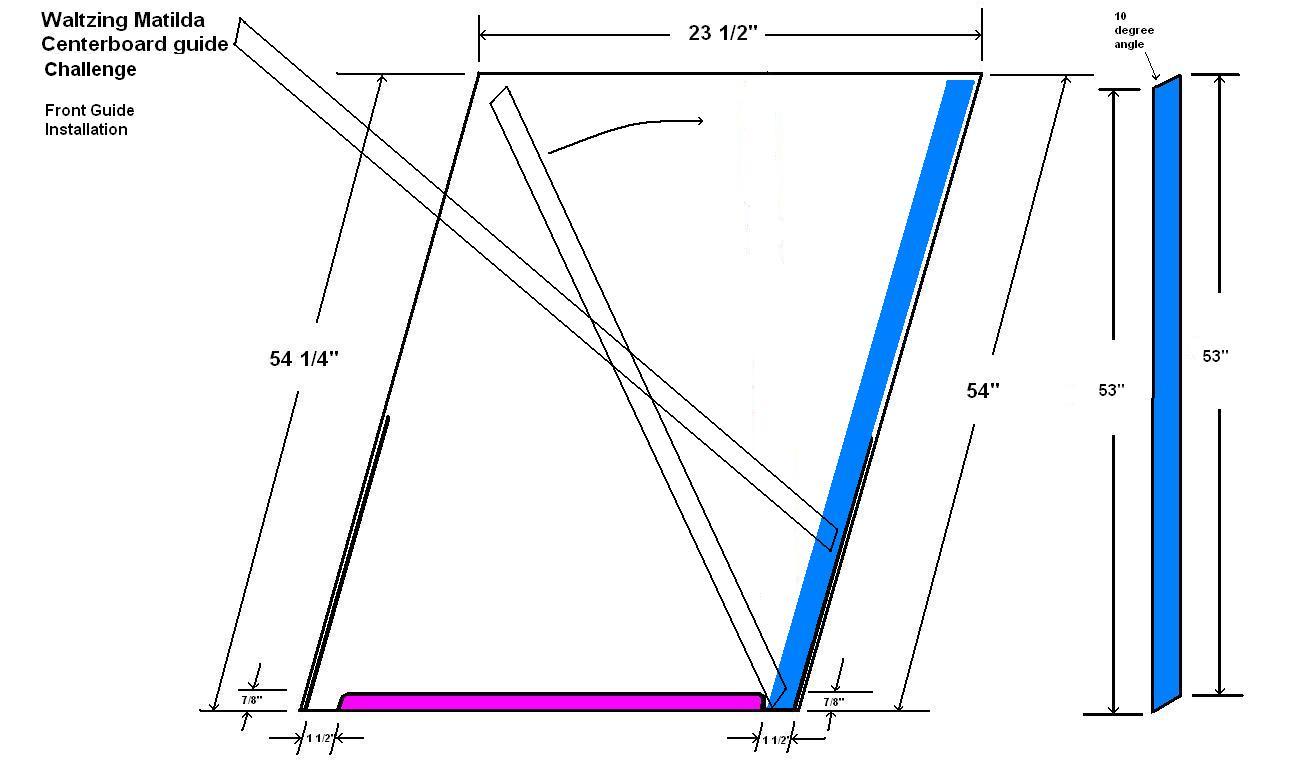

The challenge is to do something about this problem before your guides deteriorate to this state
SOLUTIONS
DRY ROT
If the guides are showing even a little bit of dry rot, you can rest assured that the rest of the wood will deteriorate rapidly from this infection. The only remedy for dry rot is replacement. One can only question why the guides were made of wood construction when they are always going to be in a moist, poorly ventilated environment when the boat is in the water. The wood might have a life expectancy of only 20 years where as the fibreglass might have a life span of 100 years.
Outlined below are several tales of coping with the repair of the centerboard guides.
FROM CHRIS HOLDERNESS
Hi Onde.I had to replace my guides. I knew they were rotten because the top part of the wooden frame pulled down about a inch because the bottom was rotted. This actually caused the cabin top to flex excessively and crack because the DPO sailed it like this!
I removed/replaced from the top but others have opened up a section of the bottom slot to get the old ones out. I didn't like the idea of weakening an area the designers had obviously thought important enough to make so thick in the first place. But - you need to cut the old guides to get them out from the top. No cutting of the fibreglass trunk - just the wooden guides. Even at that, I had to lever them out with a crowbar (from the top) as they were glassed in during manufacture. It wasn't that difficult because of the condition of the wood.
At this point, you have to make a decision as to material. Many people have used plastic HDPE material. This is extremely stong and will support the compression loads of the mast. It has a little bit of flex which will allow you to get the new ones in place in one piece. But - this material is much softer than oak and the keel plate will grind into it if not smooth - or balanced. Lorne's "balance" information is very important if you use HDPE.
I chose to replace mine with the original material - white oak. I had a wood specialty shop cut and route the slot. Expensive stuff - just the wood was $150. I was told that white oak will last 20 years without dry or wet rot problems. Unfortunately, an act of God can't bend the stuff - so I cut them in two, about 12 inches from the top. I then drilled a 3/8 hole 6 inches into each piece for a titanium rod. I then routed a slot for a stainless joiner plate on the front and back of each piece. In hindsight, the rod was not really required. The loads are compression so the plates only serve to keep the pieces aligned. I had to shape the bottom of each guide until it fit (with gentle hammer blows) into the boat. This was a pain as my guides tapered both ways and were rounded at the bottom. Be sure to continually measure the width so you don't go too far!
Other advice? Lifting the boat was a pain! I fabricated a lifting rig from industrial shelving, tow motor lifting straps and chain hoists. Didn't end up using this as it just didn't feel sturdy enough. Ended up using a friends tow motor with cargo straps. It was an eyeopener trying to drag the keel out from under the boat - it doesn't look like it should be so heavy. Two of us could barely drag it clear!
It was a lot of work but needed to be done. I don't think the new owner fully understands the amount of work that I've saved him! Hopefully, he will refer to me as the PO and not the DPO! If you check out the "Matilda project" in the Photo album section of our site, you'll see pictures of this and other repairs.
http://www.holderness.info/
Chris
"Once a Matilda owner - always a Matilda owner"
--~--~---------~--~----~------------~-------~--~----~This message is part of the topic "Oak keel guides" in the Google Group "Matilda Sailboats"for which you requested email updates.To stop receiving email updates for this topic, please visit the topic at http://groups.google.com/group/Matildasail/t/ec552571cd84095d-~----------~----~----~----~------~----~------~--~---
MORE FROM CHRIS
From Matilda Forum (Guides for lifting keel - Nov. 7/2006)
I didn't want to cut the bottom slot since the cut would have to extend almost a foot up from the bottom - lots of fibreglass there on our boat. I also wasn't sure how to cut something that far up a narrow slot.
Chris
FROM MALCOLM BYARD ( THIS IS A TRULY INNOVATIVE SOLUTION- Lorne)
There is another solution....Having had similar problems (which nearly sank my Matilda) I was faced with this challenge. After consulting several boat builders (Spirit of Canada, Empire Sandy), I took a completly different route to this repair. I raised the boat up from a beam of my shop using two chain hoists and slings to remove the keel ( the keel is easy to move around by one person provided you employ ramps of 2x10 wiggle it up to bench height). Ground off all rust and applied epoxy to the pock marks to ensure a completely smooth surface. Faired the keel smooth. While the keel was out dug out most of the rotten bottom part of the track.
THEN,....Wrapped the keel with 1/8th thick casting wax sheets. Put the keel back into the boat. Sealed the bottom opening with plumber's putty.
(This is sure to raise a few feathers) I poured into the top of the keel .....Casting compound and pea gravel up to within 8" of the top of the inspection cover. The trick was releasing the wax after I had poured in the casting compound. It took some thought after the wax didn't let go after I had heated up the bottom. So I built a gantry inside the cabin and jacked out the keel from the inside using a small bottle jack. Then had to remove the wax gently with a scraper and light touch of the propane torch.
The result....A little more ballast as a result of the weight of the epoxy casting resin and gravel (as filler) and a better more stable boat. Many would argue this was a hack attempt but the boat is dry, the keel is true, and she sails much more solidly than she ever did before. This repair took place three years ago and it seems to be working well.
Now,...The disadvantage is, in twenty years or so when this repair may have to be done again, it will require a bloddy jackhammer to remove the casting compound. I did the inquiries to the specs of the compound and found it was not water permiable in this application and gravel is inert to water.
Sorry I did not photograph the proceedure. Seems to me it was slightly more expensive ($400) than replacing oak but I have been assured that the compound will endure more water exposure, keel scraping, and abuse than either wood or delrin (water impermiable plastic). Don't have the spec sheets handy but contact any casting shop and they can help you out with getting you the compound and the wax. Casting compound, unlike epoxy resin can be poured in depth without creating dangerous amounts of heat.
Good luck, happy sailing.
P.S. I will be installing a balanced keel pulley this winter on BOTH of my Matildas (great solution!!)
HYAK
--~--~---------~--~----~------------~-------~--~----~This message is part of the topic "Oak keel guides" in the Google Group "Matilda Sailboats"for which you requested email updates.To stop receiving email updates for this topic, please visit the topic at http://groups.google.com/group/Matildasail/t/ec552571cd84095d-~----------~----~----~----~------~----~------~--~---
Keith:Indeed the keel trunk had not come away from the top of the cabin. (must admit at the time had not considered the downward pressure). A couple of other items for this repair. The compound will leak out of the sink/icebox drain and the old trunk bolt hole if not plugged. Once the resin sets this drain had to be drilled out again which was fairly simple. You have to get the compound up and over the rotten section of guides at least 6-8 inches in order for the compound to have a good bite on the old oak. However, once set the lower section of the keel trunk is bullet proof from all angles and so far has provided solid support for both the cabin top and the keel itself. Removing the keel is also impossible after this repair. But I don't plan on undertaking this again in my lifetime on this boat (perhaps the new MATILDA).
HYAK
--~--~---------~--~----~------------~-------~--~----~This message is part of the topic "Oak keel guides" in the Google Group "Matilda Sailboats"for which you requested email updates.To stop receiving email updates for this topic, please visit the topic at http://groups.google.com/group/Matildasail/t/ec552571cd84095d-~----------~----~----~----~------~----~------~--~---
ANOTHER INNOVATIVE SOLUTION FROM MALCOLM BYARD
HYAK
Date:
Sat, Dec 9 2006 1:43 pm
Email:
"HYAK" macar...@gmail.com
I have a Matilda 20 keel that is currently out of my boat for a re-fit this winter. If you are interested you can have a look at it. Also, if you are anywhere near Toronto, there is a Matilda sitting in the yard at Toronto Hydroplane and Sailing club that has a modified keel on it. The owner "lost" the original keel in the lake. He cut a new plate and attached a wing type composite bulb to the bottom instead of the usual cast bulb. I spoke to him years ago and he claimed at the time that it was much more cost effective to bolt on this form and fill it with concrete than it was to have a new bulb cast. Check it out, a keel from Mars will be costly, you could get the "wing" forms from HMP i think and cut yourself a new blade. Might be worth investigating. macar...@gmail.com
Sunday, October 01, 2006 8:41 PM
Evening Onde,Your questions are
How do I assess the current state of my wood?
Did my previous posting contain sufficient suggestions for evaluating the status of your wood??
Does the boat have to be on a lift?
A lift is the only method I am familiar with to remove the centerboard in order to replace the centerboard guides. It is possible to tip the boat over on its side, provided the mast is in place [even then, it would take some fairly hefty persons to accomplish that] and pull out the centerboard but when you are dealing with a 300 lb object, it is nice to have gravity on your side.
Where are the guides inserted?
The guides are an integral part of the centerboard frame.
From Below?
Very little can be accomplished from below as the slot is only approx. 1" wide, with a lip on each side making it almost impossible to do much from below.
How are the guides attached to the oak frame that houses the keel?
The guides are a slot cut approx. ½" wide and approx. 3/4" deep in the oak frames.
Are they structurally integral?
ABSOLUTELY!!!!!!! The front guide supports the mast step and if the lower portion of the guide deteriorates to the point of not being attached to the fibreglass hull, the mast [thru shroud tension, etc.] will force the cabin top lower and lower in the hull, maybe even to the point that proper length shrouds would be too long for the available turnbuckle adjustment????
The restrainer bolt at the aft inside base of the keel housing was badly bent by the former owner of my boat. When I replaced the pin I discovered that the wood around the bolt was rotted. Does that bolt go to a guide or to some fixed post in the keel housing?
The limit bolt fits thru a hole in the wooden frame [to block the groove cut for the centerboard] and is also supported by a relatively thin layer of fibreglass on the outside of the frame. The wooden fibers, around the hole, may have been crushed by the impact of hitting something or, if the lower part of the front guide has worn sufficiently, the part of the centerboard above the limit bolt may have bent the limit bolt, each time the centerboard was lowered completely. In other words, the weight of the centerboard was held because the wire had reached the end of its travel, not the limit bolt as the limit bolt was being bypassed.
The 20-30 hours of labor...does it involve cutting and replacing fiberglass?
My personal opinion is that cutting and replacing fibreglass will result in a less than perfect finish as compared to the original fibreglass and that 20-30 hours is a very conservative estimate.
Do you have to break open the keel housing inside the boat or is it all done from below?
NO!!! it is not necessary to break open the keel housing. As stated previously, very little can be accomplished from below. In my opinion, the original white oak frame/guides were probably inserted in the hull, before the deck was attached to the hull. The wood was probably set into the resin/fibreglass mixture before it had set completely and as far as I know, this was the only bonding performed on the lower end of the wood.
In previous conversations with Chris Holderness, who recently replaced his centerboard guides, shaping the replacement frames to fit the original cavities for the frames lower ends was a challenging part of replacing the frames.
Hope these comments are of value to you.
Please feel free to contact me if I can be of further assistance.
CHEERS
LORNE--~--~---------~--~----~------------~-------~--~----~This message is part of the topic "Oak keel guides" in the Google Group "Matilda Sailboats"for which you requested email updates.
HERE IS ANOTHER APPROACH FROM GERRY BLACKWOOD
(e-mail dated Feb. 1/06)
Hi Lorne:
I have all the hardware to do the mods to my boat, they will have to wait until the weather gets better. I have found a good magazine called BoatWorks, it is full of good information for the hands-on sailor, found a good article on replacing the windows by Paul Esterle. About the keel tracks, I used 2"square nylon which I cut using a table saw and a router to cut the groove. The old tracks where cut in two parts just above the well opening from the inside, where the panel is removed to service the pulleys and cable, they came out with out a lot of force. The tracks have to be cut to fit into the wooden beam that carries the pulleys and the only way to reinstall the new ones was form the bottom outside, to do that I had to cut a 2" square hole in the center of the keel slot and inserted the new tracks, a piece of plywood cut to the with of the keel helped force the new tracks into place. The 5200 glue was applied to front of each track and I used 2" stainless steal screws,used above the waterline, to hold the tracks in place. The new tracks work great and I have not had any problems with them, a bit of grease and the keel slides up and down very easily, no more worrying about them rotting and I am sure they are just as strong as the wooden ones. I will let you know how I am doing once I get the boat in the water. I have been checking your Bloc for any up dates and found the article about the Cunningham (down haul) and will try it as well. With these changes to my boat I might try the Wednesday night racing again I have a 85 handicap, what do you think?
Gerry
From an e-mail from Gerry dated Nov. 26/2010
Hi Lorne:A lot has changed since I wrote that e-mail. The fall of 2006 I purchased a Pearson 26 and sold my Matilda Feb 07 and this August I purchased a C&C 29 mk1. Reguarding your questions, the 5200 worked fine and I used 2" stainless steel wood screws and never had any other problems while I own the Matilda. Hope that helps.Gerry
HERE IS another approach - creating a new centerboard out of fibreglass
Feb. 15/07
Lorne,
Wood worm is only suffered if you leave your boat sitting in mud for along period of time. No risk to fresh or salt water. Once you've got it the only way to rid yourself is remove the wood. Wood worm may be a local term for the problem.
The leading edge deteriorates because of a complement of the 10 deg. daggerboard angle and the off center of gravity placement of the daggerboard pullies. It is the lower aft end deterioration that has me stumped. It could be wear from a poorly working daggerboard or rust from non-use, and not require consideration with respect to refit.
My daggerboard solutions to date are
Move the lead ball forward by 3 to 4 inches to better allign the CoG to the center of the daggerboard. This will only marginally move the boat's CoG and this may not be a bad thing given that we are not featherweights and the cockpit is behind the boat's CoG.
Build a daggerboard plate out of 5/8 inch thick glass laminate. Polyester all layers and sheath the plate in one layer of epoxy glass.
Move the location of the pullies aft, as described by this groups members.
I don't want to rebuild the top member of the daggerboardbox frame but leaving the top pullies in their original position removes 50% of the benefit of moving the lower pullies back. I think.
Peter
On Feb 14, 1:15 pm,
Morning Peter&Mary,
Really enjoyed the photos of your project boat. Your AZULITA is looking pretty good already. Your question on one of the photos "What causes the leading edge of the centerboard and the centerboard guides to deteriorate" might be answered by having a look at our blog http://pamsmatilda.blogspot.com/
under centerboard assembly test.
You might also have a look at our blog
http://matildacenterboard.blogspot.com/
where I have attempted to gather various approaches to solving the problems with MATILDA centerboards. The photo of the holes right thru the centerboard brings a whole new perspective to proper maintenance on a MATILDA centerboard. Is this a problem unique to salt water sailing?
Are wood worms unique to salt water or do they survive in fresh water as well?
GOOD LUCK on your renovations.
Cheers
LORNE
On Feb 11, 3:18 pm,
"Pedro" wrote:
Thanks to all in the group that have participated in the questions dealing with keel and wiring issues.
I work at a boatyard in Petie Riviere NS and have just starte renovating our, new to us, Matilda. There has been no maintenance done on Azulita for a very long time, we suspect since she was initially purchased 30 years ago.
Windows are frosted or blown out. Daggerboard is rotted right through to having holes in the plate. Wiring connections and lights are rusted, broken and nonfunctional. Hull has been hit by a car, and many other objects. Paint is original with a red strip appiled by walking a roller along the sheer. Daggerboard box has wood worm and totally rotted from the bottom up 7 inches.
But she's a beamy comfortable little boat that will serve us well. Hopefully after the winter renos she will be pretty, too.
http://www.dagleysboats.com/gallery/main.php/v/restore/album/
is where photos of the renos can be seen.
Peter & Mary
It will be interesting to see how Peter&Mary's approach to building a new fibreglass centerboard works out, Lorne
Here's an update on Peter's fibreglass centerboard.
From e-mail dated Sept 21/09(6:39am) from Peter&Mary
Hello Tony. I notice that your centerboard is carbon steel and has what appears to be serious rust. I fixed a Matilda 20 a few years back and replaced the centerboard with a fiberglass one. It works very well but was a lot of work. The corroded c/b had eaten away the front guide of the c/b box, which is a common problem I believe. I replaced everything except the pulleys and lead ball. I also took note of the redesign of the pulleys as noted in detail by one of the other members.
I also noticed that the boat is being stored on a trailer with the centerboard up. This puts all the weight of the centerboard on lead bottom on the hull and pulley and cable system.
This may contribute to the depressions on the hull surface, as seen in your photos.
The windows and deck hardware have caulking all over the fasteners, undoubtedly to stave off leaks. This method never works and I’ll suspect they all need to be removed, surfaces cleaned and reinstalled.
Prior to my purchase the boat had sunk to the bottom of the ocean, left there for the summer, haled out and left in the mud for a few years. Everything leaked. The centerboard had rusted totally though in 5 places. It was painted with what looked like house paint and a roller. Hit by a truck…. Etc.
Lots of work over one winter and I had a beautiful boat that works perfectly.
If you need to hire, the cost will exceed the value of a fixed up boat but if you’re handy ,and God knows we are!, you’ll have the biggest little boat around and at low cost.
Peter
From e-mail dated Sept 22/09(7:29pm) from Peter&Mary
Tony, my centerboard is solid glass and polyester resin. It is about 3/4" thick. I would not recommend this to the novice as it is tricky to ensure the board does not warp as you lay it up. I am a journeyman boatbuilder. The materials were available to me a low cost as I just used scrap glass for most of the layup. I would recommend another steel centerboard. Stainless if you have the budget. When you take the board off lay it on cardboard and track it out. Give this to a steel fabricator. Be sure to check the Matilda site for new pulley location recommendations, they work well.
When checking the interior, wiring can be in need of replacing. If you need nav. lights to sail in your area you’ll need to cost it out also.
I think the price of $2,500 or less is good. That’s what I paid for mine. Mine came with an old trailer that I had to replace the tongue, axel, wheels and wiring.
If you like to bury yourself in the garage till midnight working on stuff, you may get this boat ready by spring but if you just think you like to, but don’t actually get out to the garage often, add an extra $4k to the price and buy a ready to sail Matilda. The money will be the same in the end. The only thing you’ll miss is the satisfaction that comes from saving an old boat in disrepair and knowing you are sailing a boat that has a big part of you in it.
One of the good things that comes from a Matilda purchase is “this group”. I don’t participate in the chats very often but I did use the help and resources that they offer up. This is a very knowledgeable and helpful bunch!
Good luck on Wed.
Peter
ANOTHER APPROACH
(From Matilda owners website - May 29/08)
(From Matilda owners website - May 29/08)
Bill Ripley
View profile
More options May 21, 8:52 am
From: "Bill Ripley" ...@sympatico.ca>
Date: Wed, 21 May 2008 08:52:43 -0400
Local: Wed, May 21 2008 8:52 am
Subject: re: centerboard and attachments
Here are some pictures of my centerboard repair, the previous owner had hit something and damaged the joint between the trunk and the hull. He cut the floor out and had made it water tight with putty. The guides were deteriorated as well so I cut the side out of the trunk, installed the new guides and then glassed the trunk back together. It was a lot of work but simple to do the fitting etc. with the trunk open and I have a much stronger boat than the original. I did a mat, roving, mat layup on the joint. There will be cosmetic work on the trunk but that will have to wait for another year.
Bill Ripley
Trunk side removed
Guides installed and ready for glassing
Guides glassed in and ready for finishing
WEAR
One must question whether the wear is excessive enough to warrant replacement of the guides or can some other solution allow the current structure to remain in place, IF, a way was found to keep the situation from deteriorating. Any solution to the problem of centerboard guide wear must consider the problem of whether you are solving the problem or merely solving a symptom of that problem.
My personal opinion is that, with the "TAIL HEAVY" centerboard, the problem is the enormous pressure of 160 lbs exerted against the lower front guide. This design flaw causes the front guide to wear at an accelerated rate. I don't believe the "EARLY" centerboard guides wear as rapidly.
Replacing the guides using the original pulley system solves the immediate problem of the guides being worn but the problem is doomed to repeat itself as the reason for the rapid deterioration has not been eliminated.
We have changed our pulley system to the "BALANCED" system for the last three years and have not experienced any problems.
For additional information, see
http://pamsmatilda.blogspot.com/
under CENTERBOARD ASSEMBLY TEST
One must question whether the wear is excessive enough to warrant replacement of the guides or can some other solution allow the current structure to remain in place, IF, a way was found to keep the situation from deteriorating. Any solution to the problem of centerboard guide wear must consider the problem of whether you are solving the problem or merely solving a symptom of that problem.
My personal opinion is that, with the "TAIL HEAVY" centerboard, the problem is the enormous pressure of 160 lbs exerted against the lower front guide. This design flaw causes the front guide to wear at an accelerated rate. I don't believe the "EARLY" centerboard guides wear as rapidly.
Replacing the guides using the original pulley system solves the immediate problem of the guides being worn but the problem is doomed to repeat itself as the reason for the rapid deterioration has not been eliminated.
We have changed our pulley system to the "BALANCED" system for the last three years and have not experienced any problems.
For additional information, see
http://pamsmatilda.blogspot.com/
under CENTERBOARD ASSEMBLY TEST
Tuesday, October 10, 2006
REMOVING GUIDES
Removing WALTZING MATILDA'S Centerboard Guides
(Please ignore date on posting as that date was necessary to have this post appear where I wanted it).
This posting was actually started on N0v. 24/2010.
After 7 years of using the "balanced" system of suspending our centerboard, the time has arrived to replace the guides as the lower 10" of each guide has rotted away to almost nothing.
When our guides were inspected 7 years ago, they were in reasonable shape- worn a bit but not rotted. It is worth mentioning that when inspecting the guides, the condition of the upper half of each guide will be found in reasonable shape, it is the bottom half of each guide that presents the greatest risk for catastrophic disaster.
In my opinion the only proper way to inspect the lower half of each guide is to remove the daggerboard completely to insure a proper thorough inspection.
If the balanced system had not been implemented, our guides would have been in much worse shape. In my opinion, the balanced system has bought us 7 years of trouble free operation before the guides absolutely had to be replaced.
It is a source of amazement to me that the guides could have deteriorated so much in a relatively short space of time. In fact the lower 10" of each guide look like charcoal rather than wood. The lower ends are very crumbly and they disintegrate when handled.
Front centerboard guide
Rear centerboard guide has not deteriorated as badly as the front guide
This condition could compromise the watertight integrity of the centerboard trunk at the top front corner of the centerboard (penetrating the trunk) if one encounters any obstruction with the centerboard bulb.
The bulb is about twice as far from the limit bolt (pivot point) as compared to the top front corner. Consequently, whatever force is exerted against the bulb will be multiplied by 2 against whatever is restraining the top front corner.
If there was an inch of white oak material ahead of the top corner to spread the load, as with a brand new front guide, the bulb could hit an object without causing significant damage to the trunk. Without a guide in good condition, an encounter with even a shallow depth could easily fracture the 1/4" thick centerboard trunk and then you start bailing fast.
This condition is not to be ignored, unless you enjoy that sort of gamble, as serious consequences could result -
Your MATILDA could sink very quickly as a result of this situation!!!!
WALTZING MATILDA (before painting) on hoist at a friend's driving shed.
Notice the skids and cradle under stern of boat. This year's (2011) centerboard removal was accomplished in less than an hour and one half from the time the boat was lifted off the trailer until it was back on the trailer, ready to depart.
The centerboard removal operation went quickly and without mishap.
#1 Position boat on trailer under hoist.
#2 Remove trailer from tow vehicle.
#3 Lower support on front of trailer so that stern of boat is as high as possible.
#4 Stack supports (skids?, etc.) under cradle at stern of boat.
#5 Put lifting strap under boat just in front of bulb.
#6 Lift boat off trailer.
#7 Remove trailer.
#8 Put heavy blanket under bulb area.
#9 Assemble blocks under bulb to take weight of bulb (a hydraulic jack works great for this).
#10 Remove bolts holding pulleys from top of centerboard.
#11 Carefully remove blocks supporting centerboard until centerboard is on the blanket.
#12 Lift boat on hoist until centerboard is clear- approximately 46" clearance between ground and boat bottom at front of bulb - be careful that centerboard does not fall over when it comes out of slot,
#13 Gently lay centerboard flat on blanket and pull blanket out from under boat.
#14 Put trailer back under boat and lower boat onto trailer.
#15 Remove lifting strap, remove cradle and supports under stern, hook up to tow vehicle and drive away.
The centerboard "AWLGRIP" paint has stood up amazingly well, considering it has been in operation for 7 years. It only required a light wash with muriatic acid to clean and looks like it did when initially installed.
The leading edge of the centerbord is in good shape proving that the balanced pulley system is worth the effort.
The most interesting observation was that the bottom of the bulb had most of the green epoxy paint scraped off yet the primer paint was in decent shape???? We must have ventured into skinny water too often?
Removing the guides was relatively easy
as the bottoms of the guides were so deteriorated.
Any wood above the waterline was in reasonably good shape.
As the wooden top support had split and been repaired by a previous owner, it took only a few cuts with a chisel to cut the support in half which made removal of the guides much easier.
The top support was not glued at the ends but held only with wood screws.
With the top removed, it took only a few blows with a long screwdriver to separate the joint between what good wood was left and the fibreglass trunk.
Should mention here that the wood surrounding the axle (bolt) nut for the pulley that leads to the winch had deteriorated.
Over the years, tightening the bolt had exerted sufficient stress on the nut that the wood surrounding the nut had fractured.
So use discretion when tightening those axle bolts in the top support.
(Please ignore date on posting as that date was necessary to have this post appear where I wanted it).
This posting was actually started on N0v. 24/2010.
After 7 years of using the "balanced" system of suspending our centerboard, the time has arrived to replace the guides as the lower 10" of each guide has rotted away to almost nothing.
When our guides were inspected 7 years ago, they were in reasonable shape- worn a bit but not rotted. It is worth mentioning that when inspecting the guides, the condition of the upper half of each guide will be found in reasonable shape, it is the bottom half of each guide that presents the greatest risk for catastrophic disaster.
In my opinion the only proper way to inspect the lower half of each guide is to remove the daggerboard completely to insure a proper thorough inspection.
If the balanced system had not been implemented, our guides would have been in much worse shape. In my opinion, the balanced system has bought us 7 years of trouble free operation before the guides absolutely had to be replaced.
It is a source of amazement to me that the guides could have deteriorated so much in a relatively short space of time. In fact the lower 10" of each guide look like charcoal rather than wood. The lower ends are very crumbly and they disintegrate when handled.
Front centerboard guide
Rear centerboard guide has not deteriorated as badly as the front guide
This condition could compromise the watertight integrity of the centerboard trunk at the top front corner of the centerboard (penetrating the trunk) if one encounters any obstruction with the centerboard bulb.
The bulb is about twice as far from the limit bolt (pivot point) as compared to the top front corner. Consequently, whatever force is exerted against the bulb will be multiplied by 2 against whatever is restraining the top front corner.
If there was an inch of white oak material ahead of the top corner to spread the load, as with a brand new front guide, the bulb could hit an object without causing significant damage to the trunk. Without a guide in good condition, an encounter with even a shallow depth could easily fracture the 1/4" thick centerboard trunk and then you start bailing fast.
This condition is not to be ignored, unless you enjoy that sort of gamble, as serious consequences could result -
Your MATILDA could sink very quickly as a result of this situation!!!!
WALTZING MATILDA (before painting) on hoist at a friend's driving shed.
Notice the skids and cradle under stern of boat. This year's (2011) centerboard removal was accomplished in less than an hour and one half from the time the boat was lifted off the trailer until it was back on the trailer, ready to depart.
The centerboard removal operation went quickly and without mishap.
#1 Position boat on trailer under hoist.
#2 Remove trailer from tow vehicle.
#3 Lower support on front of trailer so that stern of boat is as high as possible.
#4 Stack supports (skids?, etc.) under cradle at stern of boat.
#5 Put lifting strap under boat just in front of bulb.
#6 Lift boat off trailer.
#7 Remove trailer.
#8 Put heavy blanket under bulb area.
#9 Assemble blocks under bulb to take weight of bulb (a hydraulic jack works great for this).
#10 Remove bolts holding pulleys from top of centerboard.
#11 Carefully remove blocks supporting centerboard until centerboard is on the blanket.
#12 Lift boat on hoist until centerboard is clear- approximately 46" clearance between ground and boat bottom at front of bulb - be careful that centerboard does not fall over when it comes out of slot,
#13 Gently lay centerboard flat on blanket and pull blanket out from under boat.
#14 Put trailer back under boat and lower boat onto trailer.
#15 Remove lifting strap, remove cradle and supports under stern, hook up to tow vehicle and drive away.
The centerboard "AWLGRIP" paint has stood up amazingly well, considering it has been in operation for 7 years. It only required a light wash with muriatic acid to clean and looks like it did when initially installed.
The leading edge of the centerbord is in good shape proving that the balanced pulley system is worth the effort.
The most interesting observation was that the bottom of the bulb had most of the green epoxy paint scraped off yet the primer paint was in decent shape???? We must have ventured into skinny water too often?
Removing the guides was relatively easy
as the bottoms of the guides were so deteriorated.
Any wood above the waterline was in reasonably good shape.
As the wooden top support had split and been repaired by a previous owner, it took only a few cuts with a chisel to cut the support in half which made removal of the guides much easier.
The top support was not glued at the ends but held only with wood screws.
With the top removed, it took only a few blows with a long screwdriver to separate the joint between what good wood was left and the fibreglass trunk.
Should mention here that the wood surrounding the axle (bolt) nut for the pulley that leads to the winch had deteriorated.
Over the years, tightening the bolt had exerted sufficient stress on the nut that the wood surrounding the nut had fractured.
So use discretion when tightening those axle bolts in the top support.
Thursday, October 05, 2006
PREPARATIONS FOR NEW GUIDES
Preparing to install new WALTZING MATILDA centerboard guides
(Please ignore date on posting as that date was necessary to have this post appear where I wanted it.) This post was actually started on Jan. 6/2011. One of my objectives in installing new guides would be to install guides made of material that could stand up to being immersed in water. I considered the installation of wooden guides to be a major design flaw of MATILDAS in that even the best wood available e.g white oak could not be expected to last even 30 years when the hull has the potential to survive for 100 ?? years if properly maintained.
Another objective was to eliminate the tenon and mortise joint in the upper corners as one has to have room to slip the tenon into the mortise and that is impossible without the guide projecting out the bottom of the centerboard trunk.
Another goal was to eliminate the original wooden cross support that had been split and repaired by a previous owner.
This the basic concept of new approach.
A steel plate bolted from mast step.
Welded section containing pulleys.
Front and rear guides made from ULTRA HIGH DENSITY POLYETHYLENE or by another name ULTRA HIGH MOLECULAR WEIGHT POLYETHYLENE because of the outstanding attributes of this material. U.H.D.P.E. has extremely low moisture absorption, has a very low coefficient of friction, is self-lubricating, and is highly resistant to abrasion (15 times more resistant to abrasion than carbon steel).
Sketch of top plate made from 1/2" steel plate. Cutouts are to allow clearance for pulleys.
Mast step bolts will thread into this plate which will eliminate problem of holding mast step locking nuts while bolts tightened. Mast step bolt holes are approximate on this sketch.
Details of front guide made from UHDPE.
Basically a duplication of original front guide except for top corner.
Length of guide will have to be adjusted to fit in cavity.
Rear guide made from UHDPE.
Notice wide area of guide walls to assist in supporting centerboard below limit bolt.
Original rear guide did not offer any side support to centerboard below limit bolt cut out, as a consequence, the slot that the daggerboard extends from was originally 3/4" wide, the front of the slot is 3/4" but the rear of the slot is worn to almost 1" wide. Hopefully the extra material added to the guides will keep the rear of the daggerboard better contained.
When centerboard was fully extended, there was only 6 " still in the rear guide groove even tho there was still 12" of centerboard inside centerboard trunk. There was no side support for rear of centerboard below limit bolt. Length of guide will have to be adjusted to fit cavity.
Support plate
Basically two pieces of angle iron, 20" in length welded together to form a 1 1/4" by 2 1/4" box and tabs added for bolting to guide
3/8" X16 stainless nuts were welded to the back to anchor pulley axle bolts securely.
The new guides made up to the specifications detailed earlier.
The guides were obtained from C.B.S. Equipment, Stratford, Ontario at a cost of $640.71 completely made to my specifications.
Delivery was received 2 weeks after they were ordered.
If these guides were made in any significant quantity , the price should be improved.
They certainly did an excellent job of making up the guides.
The top plate support painted and ready to install
The pulley support assembly
painted and ready to install.
Now the challenge is how to install guides in centerboard trunk ?????
#1 Cut hole in top of trunk under the mast step plate and use cut out section to glass back in under the mast step plate?????? (The mast step plate should hide any imperfections in glassing).
#2 Cut hole in bottom of slot in bottom of daggerboard trunk?? (Not a great idea as the upper half of the guides have a width of 1 3/4" and the lower half of the trunk is only 1 1/2" in width plus the slot at the bottom of the trunk is only 3/4" wide).
#3 Remove side of lower centerboard trunk to allow access to bottom of trunk for repairing hole punched by centerboard in front of trunk???????? (Not a great idea as most fibreglassing repairs never turn out as well as the original factory finish + should be able to patch the hole if a suitable method can be found to properly support a piece of U.H.D.P.E. , which resin will not adhere to, inside the trunk)
#4 Install guides by inserting guides in centerboard trunk from inside the cabin. (So far looks promising as the U.H.D.P.E. can be flexed a bit).
(Please ignore date on posting as that date was necessary to have this post appear where I wanted it.) This post was actually started on Jan. 6/2011. One of my objectives in installing new guides would be to install guides made of material that could stand up to being immersed in water. I considered the installation of wooden guides to be a major design flaw of MATILDAS in that even the best wood available e.g white oak could not be expected to last even 30 years when the hull has the potential to survive for 100 ?? years if properly maintained.
Another objective was to eliminate the tenon and mortise joint in the upper corners as one has to have room to slip the tenon into the mortise and that is impossible without the guide projecting out the bottom of the centerboard trunk.
Another goal was to eliminate the original wooden cross support that had been split and repaired by a previous owner.
This the basic concept of new approach.
A steel plate bolted from mast step.
Welded section containing pulleys.
Front and rear guides made from ULTRA HIGH DENSITY POLYETHYLENE or by another name ULTRA HIGH MOLECULAR WEIGHT POLYETHYLENE because of the outstanding attributes of this material. U.H.D.P.E. has extremely low moisture absorption, has a very low coefficient of friction, is self-lubricating, and is highly resistant to abrasion (15 times more resistant to abrasion than carbon steel).
Sketch of top plate made from 1/2" steel plate. Cutouts are to allow clearance for pulleys.
Mast step bolts will thread into this plate which will eliminate problem of holding mast step locking nuts while bolts tightened. Mast step bolt holes are approximate on this sketch.
Details of front guide made from UHDPE.
Basically a duplication of original front guide except for top corner.
Length of guide will have to be adjusted to fit in cavity.
Rear guide made from UHDPE.
Notice wide area of guide walls to assist in supporting centerboard below limit bolt.
Original rear guide did not offer any side support to centerboard below limit bolt cut out, as a consequence, the slot that the daggerboard extends from was originally 3/4" wide, the front of the slot is 3/4" but the rear of the slot is worn to almost 1" wide. Hopefully the extra material added to the guides will keep the rear of the daggerboard better contained.
When centerboard was fully extended, there was only 6 " still in the rear guide groove even tho there was still 12" of centerboard inside centerboard trunk. There was no side support for rear of centerboard below limit bolt. Length of guide will have to be adjusted to fit cavity.
Support plate
Basically two pieces of angle iron, 20" in length welded together to form a 1 1/4" by 2 1/4" box and tabs added for bolting to guide
3/8" X16 stainless nuts were welded to the back to anchor pulley axle bolts securely.
The new guides made up to the specifications detailed earlier.
The guides were obtained from C.B.S. Equipment, Stratford, Ontario at a cost of $640.71 completely made to my specifications.
Delivery was received 2 weeks after they were ordered.
If these guides were made in any significant quantity , the price should be improved.
They certainly did an excellent job of making up the guides.
The top plate support painted and ready to install
The pulley support assembly
painted and ready to install.
Now the challenge is how to install guides in centerboard trunk ?????
#1 Cut hole in top of trunk under the mast step plate and use cut out section to glass back in under the mast step plate?????? (The mast step plate should hide any imperfections in glassing).
#2 Cut hole in bottom of slot in bottom of daggerboard trunk?? (Not a great idea as the upper half of the guides have a width of 1 3/4" and the lower half of the trunk is only 1 1/2" in width plus the slot at the bottom of the trunk is only 3/4" wide).
#3 Remove side of lower centerboard trunk to allow access to bottom of trunk for repairing hole punched by centerboard in front of trunk???????? (Not a great idea as most fibreglassing repairs never turn out as well as the original factory finish + should be able to patch the hole if a suitable method can be found to properly support a piece of U.H.D.P.E. , which resin will not adhere to, inside the trunk)
#4 Install guides by inserting guides in centerboard trunk from inside the cabin. (So far looks promising as the U.H.D.P.E. can be flexed a bit).
INSTALLING NEW U.H.D.P.E. GUIDES
Installing U.H.D.P.E. daggerboard guides
A. Prior to installing the U.H.D.P.E. guides, it is highly recommended to break the the sharp corners of the guides with a hand plane as the cavities the guides fitted into previously, had wooden guides with the corners rounded.
B. All ends of the guides should be cut to a 10 degree angle.
C. Make up a test guide from a piece of scrap wood approx. 1 1/2" x 1 1/2" by 60" in length.
D. Make a duplicate of the top of the daggerboard out of 1/2" thick plywood as a test piece to ensure the guides are inserted with sufficient clearance for the daggerboard to slide easily.
E. Start the actual insertion by trying to install the trial guide in the front cavity to see if it fits properly in the lower portion of the cavity and the 1/8" relief on the lower section is suitable. Look at the bottom of the trunk from below to see that it fits properly.
F. Determine what length will allow the front guide (#1) to slip into position. A test guide with a maximum length of 53" was what we could fit into our front cavity. Remember a spacer (#5) will be inserted between the front guide and top plate - a shim with a thickness of .390" slid quite easily betwwen the top plate and the front guide on WALTZING MATILDA. Remember not to exert excessive down force on the front guide as there is only a 1/2" wide lip at the bottom of the trunk to keep the guide from falling out.
G. Next install the top plate (#2) with the four mast step bolts (#11).
H. Determine, using the test guide, what length will allow the rear guide (#3) to be inserted, as the 7/8" lip around the lower trunk opening causes problems. The maximum length we could get in our rear cavity was 51 3/4". This length will take some fiddling as you have to insert the guide, get it over center in order to insert the lower end of the guide in the lower cavity. Remember a spacer block will transfer pressure from the top plate to the rear guide. A spacer block (#6) of 1.900" thickness was required for a snug fit of our rear guide that had a length of 51 3/4". Also remember to relieve the lower end of the rear guide to allow for the 7/8" high fillet around the trunk exit (reduce width of guide from 2 3/8" to 1 3/4" for a height of 1"). Another reminder to not get too rambunctious exerting down pressure on the rear guide as there is only a 1/2" fibreglass lip that it rests on.
I. Now you can insert the winch cable (#4) into top plate, thru rear pulley on support plate (#13), around pulley (#7) attached to daggerboard, and counterclockwisw around front pulley and secure end of cable to becket (#12) on daggerboard pulley. Of course, you remembered to notch out the rear guide to accept the pulley support plate (Reduce top width of rear guide from 2 3/8" tp 1 3/4" for a distance of 4 1/2" from the top.
J. Now insert the 2 (3/8" x 16 t.p.i.) bolts (#8) to attach pulley support plate to top plate.
K. After ensuring that the test duplicate of the top of the daggerboard goes up and down smoothly, install the daggerboard.
L. Attach the pulley assembly to the top of the daggerboard and ensure that the daggerboard goes up and down smoothly.
M. Make up spacers for the top of the guides, remembering not to exert excessive downward pressure on guides as only the 1/2" fibreglass lip is holding them from falling out the bottom of the trunk.
N. Drill the 3/8" hole for the limit bolt and install limit bolt (#14) with rubber washers and large stainless washers. Drill and install the 4 bolts (#9) (1/4" x 20 t.p.i.) holding the top plate to the front and rear guides. Drill and install the 3" long (1/4" x 20 t.p.i.) stainless bolts (#16), with special washers and self locking nuts for securing the guides to the centerboard trunk.
O. After ensuring everything still functions OK, install the safety strap (#10) on the front of the centerboard. Our safety strap was 41 1/2" in length.
P. If still no problems, install top side cover after drilling pilot holes in the guides.
The new guides installed and daggerboard in fully raised position
New guides installed and daggerboard in fully lowered position.
New guides installed and 1/4"-20 t.p.i. 3" long flat head bolts with 1/8" thick special stainless steel washers installed thru trunk and guides to anchor guides in position as nothing will adhere well to U.H.D.P.E.
Notice bottom of daggerboard trunk original fibreglass has not been disturbed.
The daggerboard moves up and down smoothly, without any great effort, even with the balanced winch cable system.
DONE!! -CONGRATULATIONS. The new guides should be trouble free for a long, long time and your MATILDA has greatly appreciated in value.
A. Prior to installing the U.H.D.P.E. guides, it is highly recommended to break the the sharp corners of the guides with a hand plane as the cavities the guides fitted into previously, had wooden guides with the corners rounded.
B. All ends of the guides should be cut to a 10 degree angle.
C. Make up a test guide from a piece of scrap wood approx. 1 1/2" x 1 1/2" by 60" in length.
D. Make a duplicate of the top of the daggerboard out of 1/2" thick plywood as a test piece to ensure the guides are inserted with sufficient clearance for the daggerboard to slide easily.
E. Start the actual insertion by trying to install the trial guide in the front cavity to see if it fits properly in the lower portion of the cavity and the 1/8" relief on the lower section is suitable. Look at the bottom of the trunk from below to see that it fits properly.
F. Determine what length will allow the front guide (#1) to slip into position. A test guide with a maximum length of 53" was what we could fit into our front cavity. Remember a spacer (#5) will be inserted between the front guide and top plate - a shim with a thickness of .390" slid quite easily betwwen the top plate and the front guide on WALTZING MATILDA. Remember not to exert excessive down force on the front guide as there is only a 1/2" wide lip at the bottom of the trunk to keep the guide from falling out.
G. Next install the top plate (#2) with the four mast step bolts (#11).
H. Determine, using the test guide, what length will allow the rear guide (#3) to be inserted, as the 7/8" lip around the lower trunk opening causes problems. The maximum length we could get in our rear cavity was 51 3/4". This length will take some fiddling as you have to insert the guide, get it over center in order to insert the lower end of the guide in the lower cavity. Remember a spacer block will transfer pressure from the top plate to the rear guide. A spacer block (#6) of 1.900" thickness was required for a snug fit of our rear guide that had a length of 51 3/4". Also remember to relieve the lower end of the rear guide to allow for the 7/8" high fillet around the trunk exit (reduce width of guide from 2 3/8" to 1 3/4" for a height of 1"). Another reminder to not get too rambunctious exerting down pressure on the rear guide as there is only a 1/2" fibreglass lip that it rests on.
I. Now you can insert the winch cable (#4) into top plate, thru rear pulley on support plate (#13), around pulley (#7) attached to daggerboard, and counterclockwisw around front pulley and secure end of cable to becket (#12) on daggerboard pulley. Of course, you remembered to notch out the rear guide to accept the pulley support plate (Reduce top width of rear guide from 2 3/8" tp 1 3/4" for a distance of 4 1/2" from the top.
J. Now insert the 2 (3/8" x 16 t.p.i.) bolts (#8) to attach pulley support plate to top plate.
K. After ensuring that the test duplicate of the top of the daggerboard goes up and down smoothly, install the daggerboard.
L. Attach the pulley assembly to the top of the daggerboard and ensure that the daggerboard goes up and down smoothly.
M. Make up spacers for the top of the guides, remembering not to exert excessive downward pressure on guides as only the 1/2" fibreglass lip is holding them from falling out the bottom of the trunk.
N. Drill the 3/8" hole for the limit bolt and install limit bolt (#14) with rubber washers and large stainless washers. Drill and install the 4 bolts (#9) (1/4" x 20 t.p.i.) holding the top plate to the front and rear guides. Drill and install the 3" long (1/4" x 20 t.p.i.) stainless bolts (#16), with special washers and self locking nuts for securing the guides to the centerboard trunk.
O. After ensuring everything still functions OK, install the safety strap (#10) on the front of the centerboard. Our safety strap was 41 1/2" in length.
P. If still no problems, install top side cover after drilling pilot holes in the guides.
The new guides installed and daggerboard in fully raised position
New guides installed and daggerboard in fully lowered position.
New guides installed and 1/4"-20 t.p.i. 3" long flat head bolts with 1/8" thick special stainless steel washers installed thru trunk and guides to anchor guides in position as nothing will adhere well to U.H.D.P.E.
Notice bottom of daggerboard trunk original fibreglass has not been disturbed.
The daggerboard moves up and down smoothly, without any great effort, even with the balanced winch cable system.
DONE!! -CONGRATULATIONS. The new guides should be trouble free for a long, long time and your MATILDA has greatly appreciated in value.
Subscribe to:
Posts (Atom)
